Brixwell Window and Door Hardware: OEM-Compatible Replacement Parts You Can Measure Before You Order

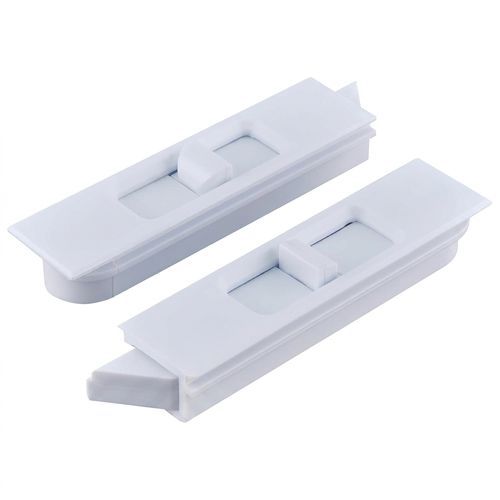

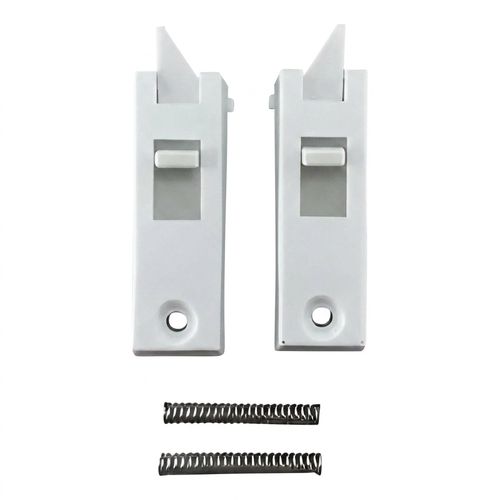

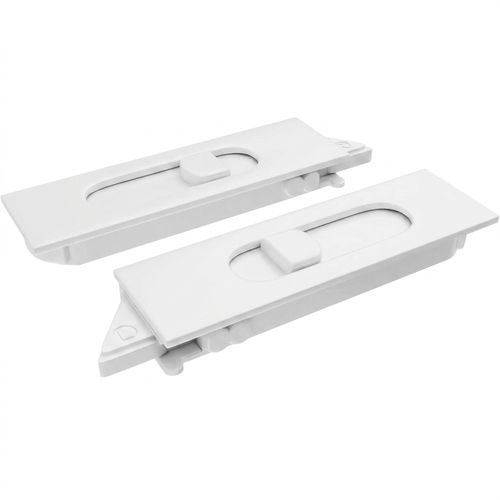

The 85-819WA is a 2-21/32-inch blue-white plastic snap-in pair for Silverline vinyl tilt windows, with a 9/32-inch nose and 3/32-inch stile snap. The 83-620WA is a 2-1/4-inch white plastic slide/tilt latch pair for Better-Bilt 83 Series windows. Different brands, different nose geometry, different stile groove width. Match the old part's stamped model number or caliper dimensions against each spec.

Use a digital or dial caliper rather than a tape measure. Nose size is the protruding tab that fits into the sash stile groove. Measure its width at the base. Stile snap is the thickness of the grip tab that clicks into the groove channel. Measure at its thinnest point. Overall length runs from tip to tip along the top of the latch body.

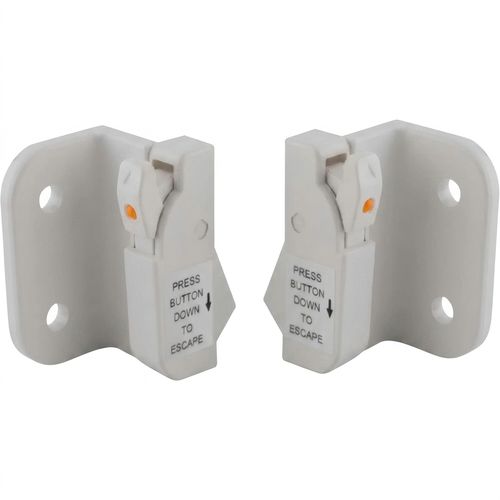

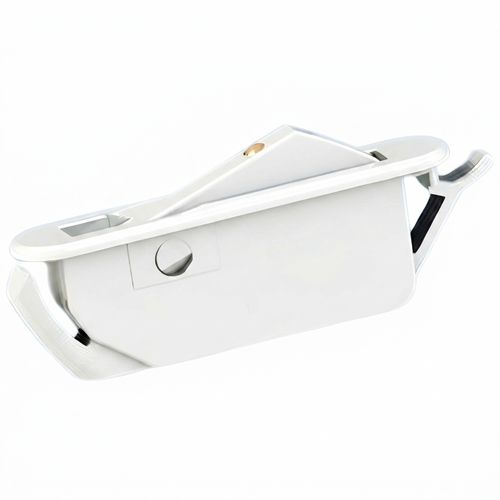

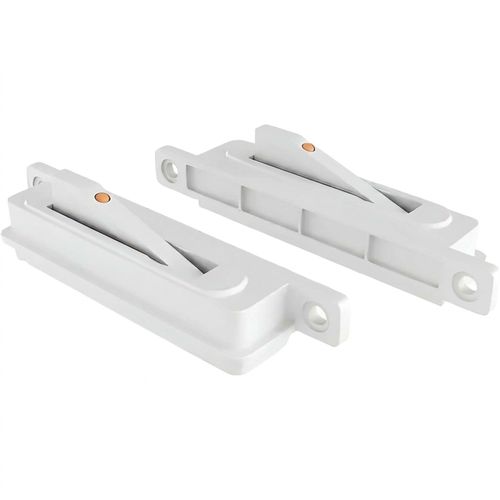

Single-action (50-2000wa) caps the sash at one child-safe opening gap, and a single adult-reach override releases the limit. Dual-action (50-2008EW, Euro White) offers two positions: a child-safe gap for daily use and a second override for full ventilation without disabling the device. Dual-action suits rooms where adults want more airflow without replacing the limiter each season.

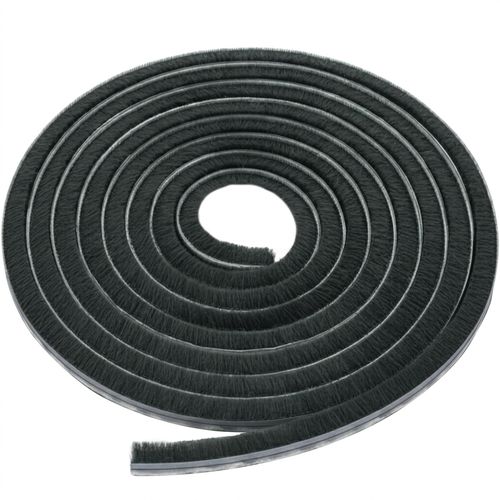

The Vanguard astragal pile roll runs 100 feet with a 0.625-inch pile height. A standard 80-inch residential French-door pair needs roughly 14 feet per astragal, so one roll covers both verticals plus replacement stock for a patio slider or interior pocket door. Measure floor to header along the astragal channel before cutting, and add four inches for trim overlap.

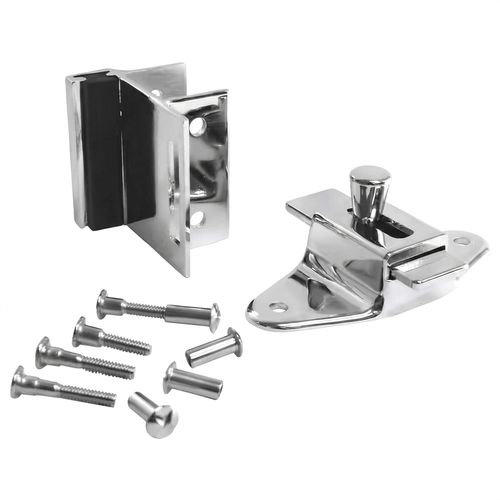

The 91-4a ships with a keeper sized for 1-1/4-inch square-edge pilasters, the standard profile in commercial restroom partitions. Hole centers on the slide latch sit 3-1/2 inches apart. If your partition uses a round-edge or wider-than-1-1/4-inch pilaster, caliper the keeper seat and compare. The chrome-plated zinc body handles restroom-moisture exposure better than painted steel.

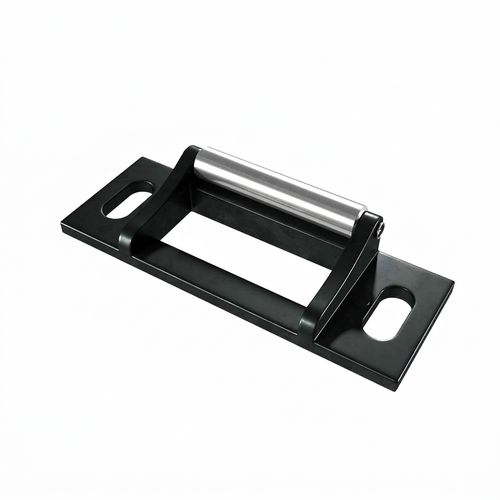

The ST-6312-DU is a surface-mount roller strike for International Rim Panic exit-door hardware. It bolts to the door frame alongside the panic bar's rim latch. The latch stays centered on the strike through repeated daily cycles. Common install contexts: commercial storefront exit doors, emergency egress hardware in retail, office, and institutional buildings. The zinc-alloy body carries a dull finish.

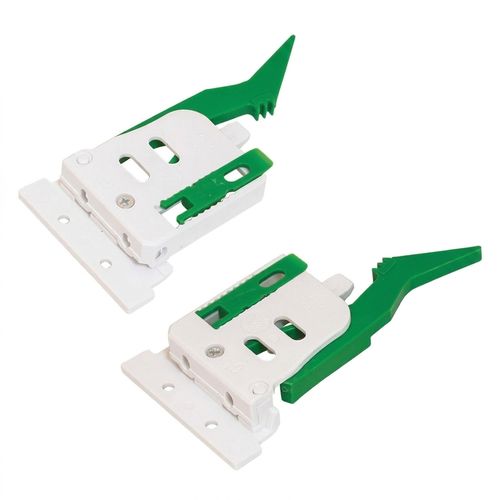

The QHGF-001 fits Grass Elite Plus and Grass Maxcess cabinet drawer slides, named directly on the product listing. Other Grass product lines (like Dynapro) use a different front-mount interface and are not listed as compatible. If your cabinet slide carries the Grass logo, check the model name stamped on the slide rail before ordering.

The chrome patio door handle arrives with brackets machined for 6-5/8-inch center-to-center hole spacing, a common residential sliding-glass-door pattern from the 1980s through the 2000s. The wood grip wraps the handle bar for warmer contact in winter. Confirm your existing hole pattern with a tape measure before ordering, because patio door hole spacing varies across manufacturers.

The published brand statement mentions customer experience as a priority, but listings do not print a direct support phone or email. Use the retailer's seller-messaging feature to contact the Brixwell team through the product page. Include the product part number (for example 85-819WA or 50-2000wa), your measured old-part dimensions, and a photo if the issue involves fit.

A lifetime warranty on window hardware often covers the frame glass or the window assembly, not individual moving parts like latches, balances, or WOCDs. These small components are wear items and often fall under a shorter hardware warranty. Read the warranty document's coverage section word-for-word before assuming a lifetime claim protects replacement parts specifically.

The published brand description states that Brixwell products are planned, manufactured, and analyzed before shipment. Independent third-party inspection documentation is not published on the product listings. If traceable inspection records matter for your project (property-management bulk orders, facility compliance work), request documentation through seller messaging before a large order.

Both. Brixwell WOCD sets (50-2000wa, 50-2008EW, compact) ship as left-hand and right-hand pairs because single-side installation leaves the sash free to slide open past the limit on the unmounted side. Install one device on each inside frame edge. The paired design is a function requirement, not a packaging upsell.

Published product listings do not cite a UV-exposure rating. Plastic tilt-latch bodies typically live inside the sash stile, shaded from direct sun by the window frame itself, so UV exposure on tilt latches stays minimal. WOCD devices mounted on the inside frame edge see indirect light and last several seasons. Outdoor-exposed parts like patio handles use chrome-over-metal rather than plastic.

A factory tilt latch and a WOCD serve different functions. The tilt latch holds the sash in place. The WOCD limits how far the sash can slide open. Most installs keep both. Check that the WOCD mounting location (typically on the inside frame edge near the sash track) does not interfere with the tilt-latch release point before drilling.

Close both door leaves. Strip the old astragal pile with a putty knife. Clean the channel with a damp cloth. Starting at the top, press the new 0.625-inch pile backing into the channel with the foam edge facing forward. Work downward and cut at the floor line with utility scissors. Repeat on the second astragal. One 100-foot roll covers both verticals with room to spare.

Use an impact driver rather than a standard drill-driver for self-tapping screws or long fasteners into metal frames. The impact driver's rotational hammering breaks through metal without stripping the screw head, where a standard drill tends to stall. For aluminum, pre-drill a pilot hole one size under the screw root diameter. Steel frames often need a cobalt bit before the self-tapper seats.

Direct-OEM parts from Andersen or Pella arrive with the original manufacturer's branding and typically sit at a higher tier than aftermarket equivalents. Brixwell publishes exact dimensions (nose, stile snap, hole centers) so dimensional fit matches across both. If the OEM part number is discontinued, an aftermarket dimensional match like the 85-819WA restores function without a long direct-OEM lead time.

All three sit in the aftermarket-hardware tier below direct-OEM. Check current prices on the retailer listing, because pricing shifts with inventory and promotions. Dimensional match matters more than brand name. Confirm the nose, stile snap, and hole centers match your old part across any brand you shortlist.

Compare caliper readings on both parts side by side. Nose width, stile snap, and overall length are the three numbers that decide fit. If the new part measures different from the listing's published dimensions, photograph both parts with a ruler in frame and open a return through the retailer's seller messaging. Include the measurements in the message for faster resolution.

Property managers and multi-unit owners often benefit from stocking spares. If three units carry the same window model, the same tilt latch will crack in the next one within a few years. A single supply-closet shelf of 85-819WA pairs, or whichever part matches your window stock, turns a future resident call into a five-minute swap rather than a measurement and order cycle.
